55A Golf electric car charging anderson connector plug

55A Golf electric car charging anderson connector plug

55A Golf Electric Car Charging Anderson Connector Plug, a versatile AC/DC connector designed for a multitude of applications in various industries.



This high-quality connector offers exceptional features and specifications to meet the demands of modern power solutions.

1.Product Introduction:

- **Versatile Application:** Ideal for a wide array of applications, from powering electric vehicles to industrial and military use.

- **High-Quality Material:** Constructed with UL94V-0 rated plastic/PC material for exceptional safety and durability.

- **Superior Conductivity:** Equipped with silver-plated copper contact terminals for efficient power transmission.

- **Resilient Build:** Designed for high-frequency operations, suitable for demanding and rugged environments.

- **Customization Options:** Supports customization to meet specific requirements and applications.

- **Flame Retardant and Dustproof:** Ensures safety and reliability, suitable for diverse environmental conditions.

- **Color Variety:** Available in red, white, and black, catering to various aesthetic preferences and easy identification.



The 55A Golf Electric Car Charging Anderson Connector Plug is a reliable and high-performance connector that suits an extensive range of industries and applications. Its adaptability, exceptional material quality, and safety features make it an excellent choice for various power and electric vehicle-related solutions. Whether in outdoor, industrial, or medical settings, this connector stands as a dependable and customizable power interface solution.

2.Technical Parameters:

Rated current(Amperes) 55A
Rated voltage(Volts) 600V
Insulation Resistance 1000MΩ
Without load(Contact/Disconnect Cycles) To 10000
Flammability UL94 V-0
The insertion force of finished products
≥2kgf
The pullout force of finished products
≥2kgf
(AWG)Contact Barrel Wire Size(AWG) 6~ 12AWG
Environment Temperatures(℃)

-20℃---125

Material of terminal Red copper
Process of production Precision punching
Fully Ag-plating on surface, it’s Ag-plating thickness  1μm
Shrapnel Stainless steel
Process of production Precision punching  Plastic Injection

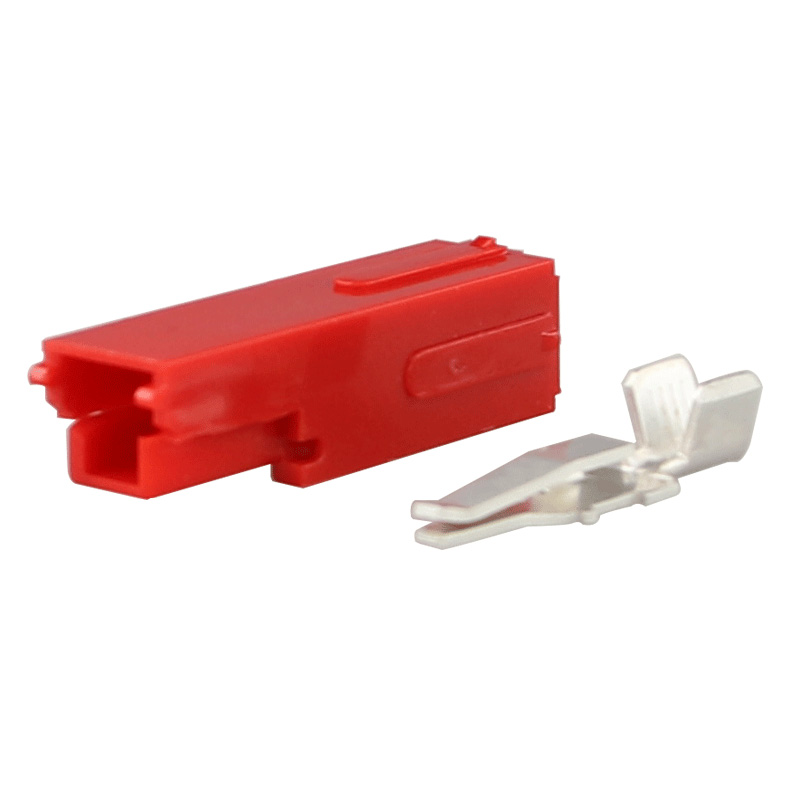

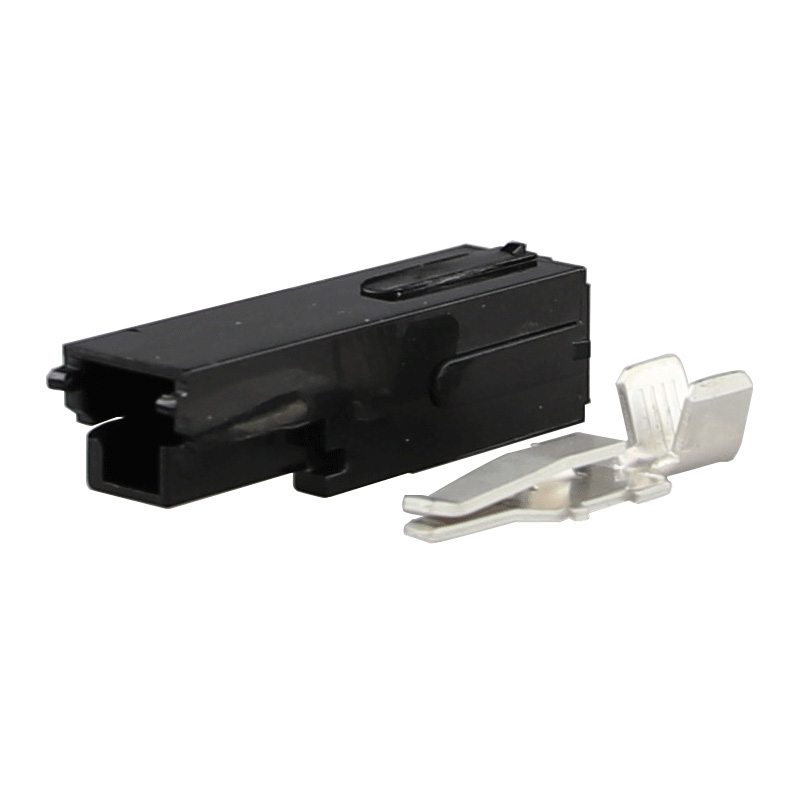

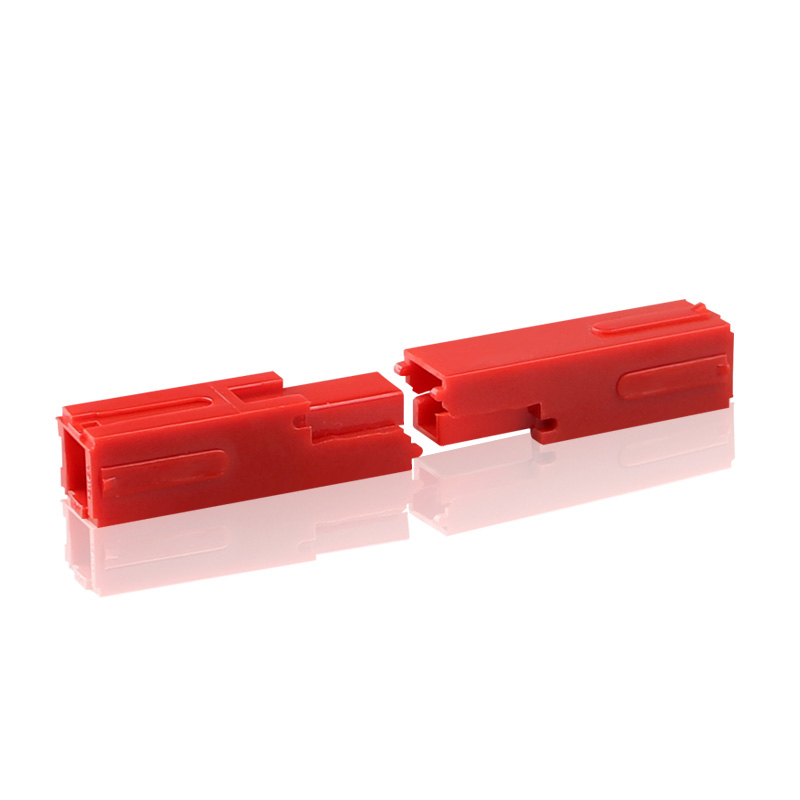

3.Picture Introduction:







4.Our Advantages:

∗At our company, we take pride in our ability to seamlessly integrate the research, development, production, and sales of various high-current connectors and accessories for new energy applications.

∗Offering unparalleled OEM cable harness customization and full-service connector and wire harness solutions, our team delivers a comprehensive approach to meeting your needs.

∗From start to finish, our goal is to provide exceptional quality and service, ensuring the success of your project. Trust us to be your all-in-one partner for cutting-edge new energy interconnectivity.



5.Packages & Shipping:

Our products are packaged to international standards, ensuring that your order arrives in immaculate condition. We are based in Guangdong, China, and dispatch all orders from this location. With our commitment to professional and efficient service, you can trust us to deliver your goods with utmost care and attention to detail.



6.FAQ:

Q: What services does your company offer for high-current connectors and cabling solutions?

A: Our company specializes in providing professional development, design, and integrated cabling solutions for high-current connectors ranging from 5A to 350A. We also offer production and sales of a wide range of high-current connectors, plugs, and UPS/EPS power sockets to support various industries, including automotive, electric vehicles, communication power, medical equipment, power distribution equipment, material handling equipment, solar energy, and new energy.

Our company boasts its own production and R&D base, and has obtained ISO9001 quality system certification. All of our products meet CE, 3C, and other certifications, as well as RoSH and REACH environmental protection requirements. With our commitment to quality and excellence, we offer reliable and efficient solutions to support our clients' businesses.
