80V 150A-G Aisle Forklift Charger The FST-Li-G Series High-Frequency Charger is a cutting-edge charging solution featuring the implementation of the LLC topology. This advanced technology provides several key advantages, including a compact size, high conversion efficiency, and exceptional performance. The charger operates with a 3-phase 480VAC input voltage and utilizes a forced-air cooling system. It incorporates comprehensive protection functions such as input overvoltage and undervoltage protection, output overvoltage and undervoltage protection, overcurrent protection, output short circuit protection, and fan failure protection.
80V 150A-G Aisle Forklift Charger
1.Product Introduction:
The charger is capable of providing full power output within a temperature range of -40°C to 50°C. In the temperature range of 50°C to 75°C, the output is derated. The insulation resistance is maintained at a minimum of 10 MΩ between the input and output, while the resistance between the output and the enclosure is kept above 5 MΩ.
The relative humidity range for proper operation is between 10% and 90%, ensuring that condensation does not occur.
2.Technical Parameters:
Rated Input Voltage Range |
3P 480VAC |
Rated input frequency |
50/60Hz |
Input power |
≤15KVA |
Rated input current(Max) |
30A |
Maximum conversion efficiency |
≥93% |
Rated output current | 150A |
Rated output voltage | 80V |
Rated output power |
12KW |
Output and input plug specifications. |
Follow customer requirement |
Communication | CAN BUS |
Auxiliary power output voltage |
12V |
Auxiliary power output current | 3A |
Cooling method | Forced air cooling |
Operating temperature |
Full power output at -40°C to 50°C Derating output from 50°C to 75°C |
Relative humidity |
10%-90% non-condensing |
Protection level | IP 20 |
Noise |
≤55dB |
Altitude |
Below 2000m |
Weight |
30kg (for reference only, please refer to actual measurement) |

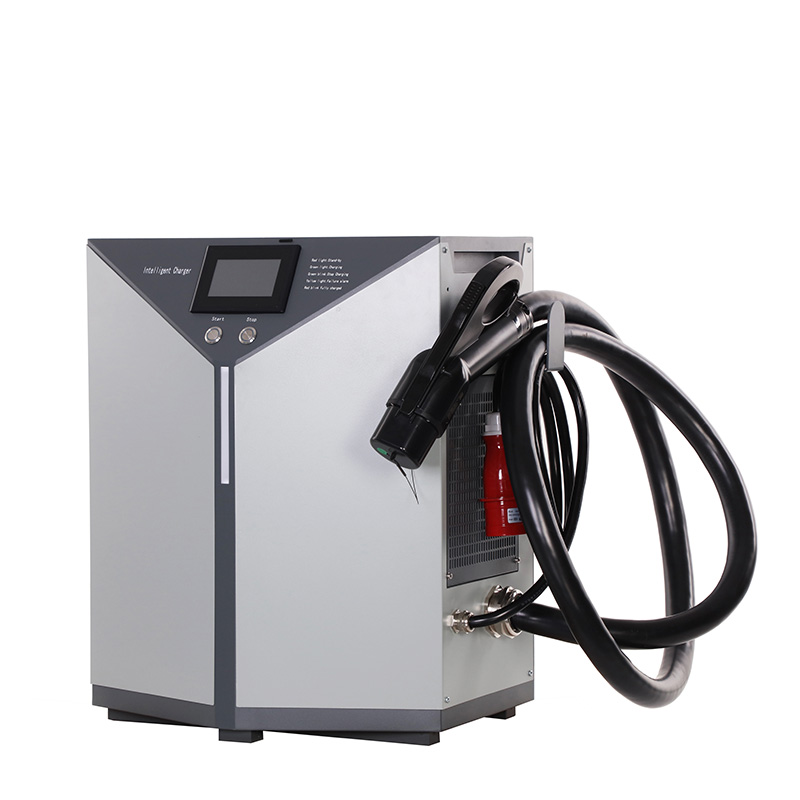

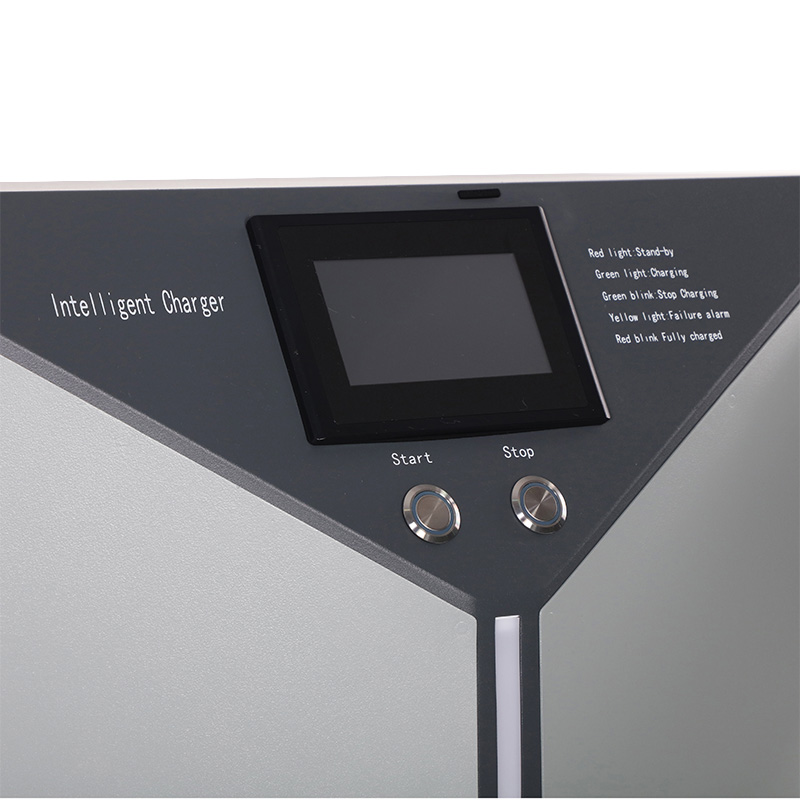

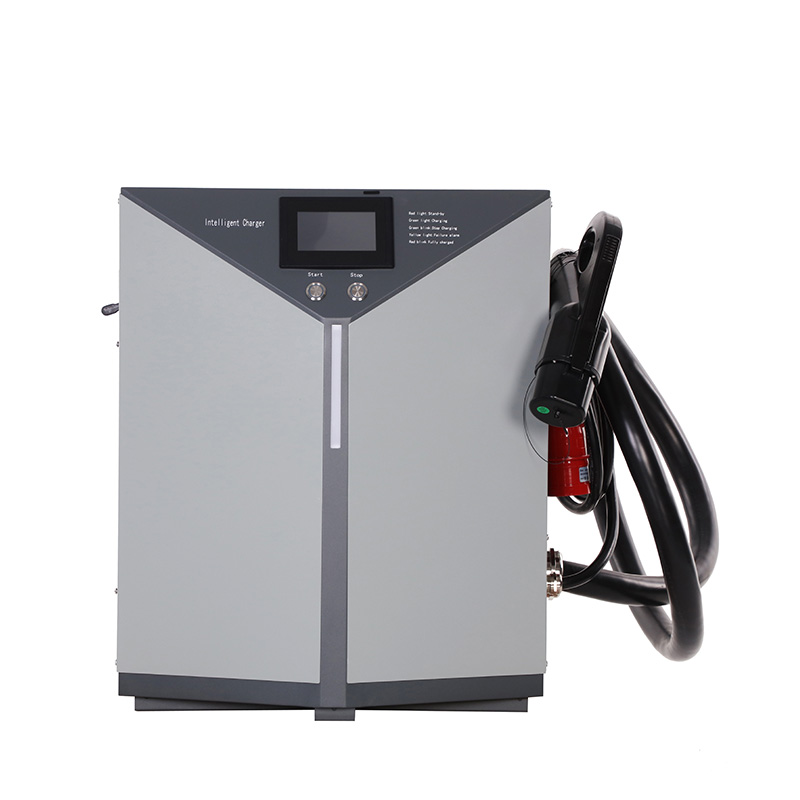

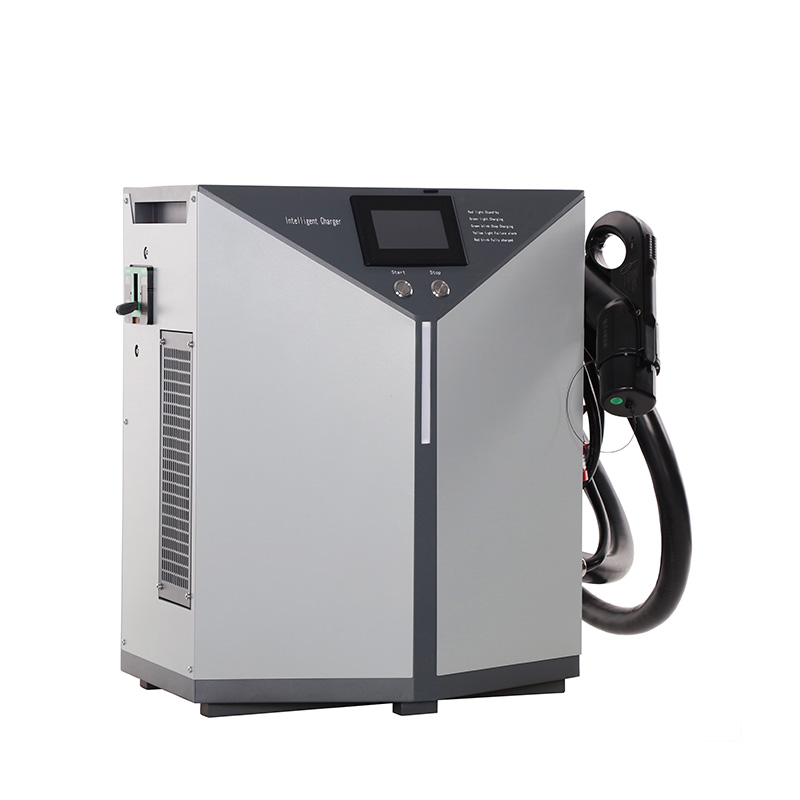

3.Picture Introduction:
4.Our Advantages:
∗At our company, we take pride in our ability to seamlessly integrate the research, development, production, and sales of various high-current connectors and accessories for new energy applications.
∗Offering unparalleled OEM cable harness customization and full-service connector and wire harness solutions, our team delivers a comprehensive approach to meeting your needs.
∗From start to finish, our goal is to provide exceptional quality and service, ensuring the success of your project. Trust us to be your all-in-one partner for cutting-edge new energy interconnectivity.
5.Packages & Shipping:
Our products are packaged to international standards, ensuring that your order arrives in immaculate condition. We are based in Guangdong, China, and dispatch all orders from this location. With our commitment to professional and efficient service, you can trust us to deliver your goods with utmost care and attention to detail.
6.FAQ:
Q: What services does your company offer for high-current connectors and cabling solutions?
A: Our company specializes in providing professional development, design, and integrated cabling solutions for high-current connectors ranging from 5A to 350A. We also offer production and sales of a wide range of high-current connectors, plugs, and UPS/EPS power sockets to support various industries, including automotive, electric vehicles, communication power, medical equipment, power distribution equipment, material handling equipment, solar energy, and new energy.
Our company boasts its own production and R&D base, and has obtained ISO9001 quality system certification. All of our products meet CE, 3C, and other certifications, as well as RoSH and REACH environmental protection requirements. With our commitment to quality and excellence, we offer reliable and efficient solutions to support our clients' businesses.
