96V 150A-G Lithium lron Phosphate Charger Introducing the FST-Li-G Series High-Frequency Charger, a cutting-edge solution designed to revolutionize charging technology. This series of chargers is built upon the innovative LLC topology, offering a compact design and exceptional conversion efficiency. With a 3-phase 480VAC input voltage and a forced-air cooling system, this charger delivers outstanding performance while providing comprehensive protection against input overvoltage, undervoltage, output overvoltage, undervoltage, overcurrent, output short circuit, and fan failure.
96V 150A-G Lithium lron Phosphate Charger
1.Product Introduction:
Regular maintenance is recommended every 30 days, although the frequency may vary based on environmental conditions. Maintenance activities include adjusting settings and performing cleaning procedures, particularly clearing any deposits from the air intake. These measures ensure unimpeded airflow and promote overall cooling efficiency for the charger.
With its advanced features, compact design, and meticulous attention to detail, the FST-Li-G Series High-Frequency Charger offers a reliable and efficient charging solution for a wide range of applications. It is the ideal choice for charging stations, providing unparalleled performance and convenience.
2.Technical Parameters:
Rated Input Voltage Range |
3P 480VAC |
Rated input frequency |
50/60Hz |
Input power |
≤15KVA |
Rated input current(Max) |
25A |
Maximum conversion efficiency |
≥93% |
Rated output current | 150A |
Rated output voltage | 96V |
Rated output power |
14.4KW |
Output and input plug specifications. |
Follow customer requirement |
Communication | CAN BUS |
Auxiliary power output voltage |
12V |
Auxiliary power output current | 3A |
Cooling method | Forced air cooling |
Operating temperature |
Full power output at -40°C to 50°C Derating output from 50°C to 75°C |
Relative humidity |
10%-90% non-condensing |
Protection level | IP 20 |
Noise |
≤55dB |
Altitude |
Below 2000m |
Weight |
30kg (for reference only, please refer to actual measurement) |

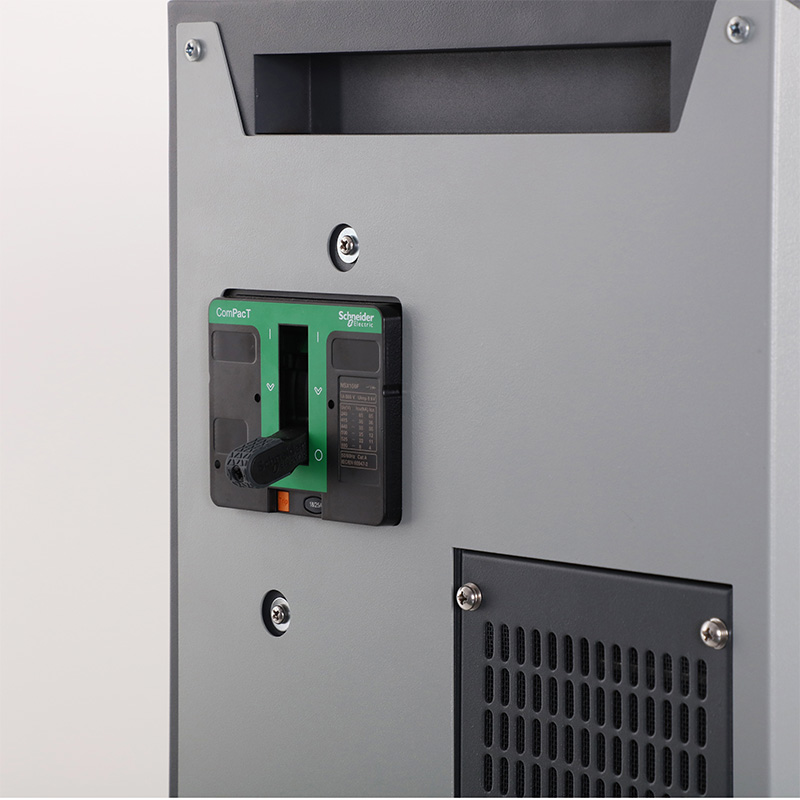

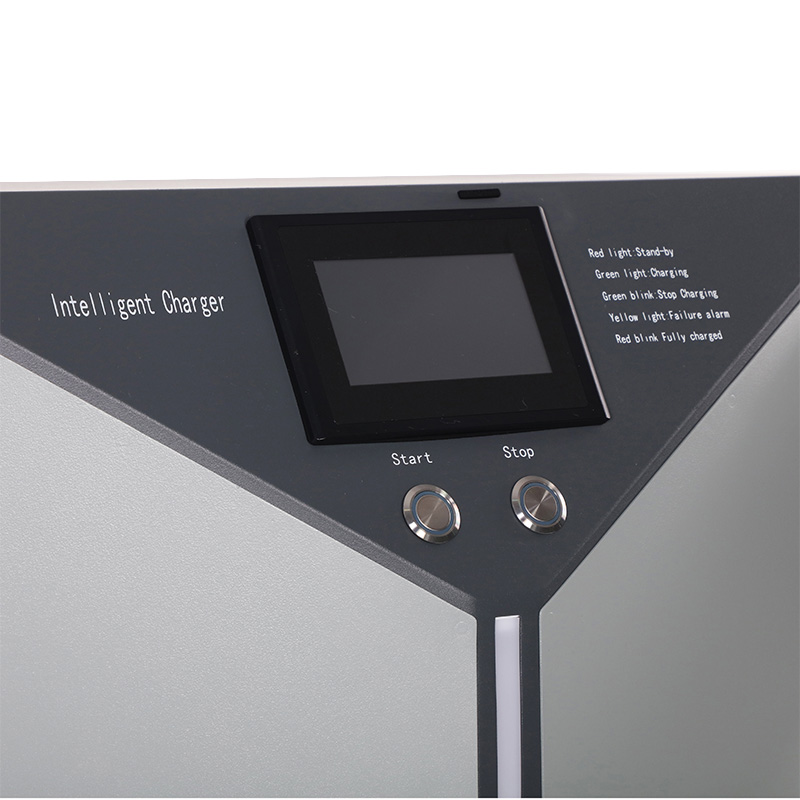

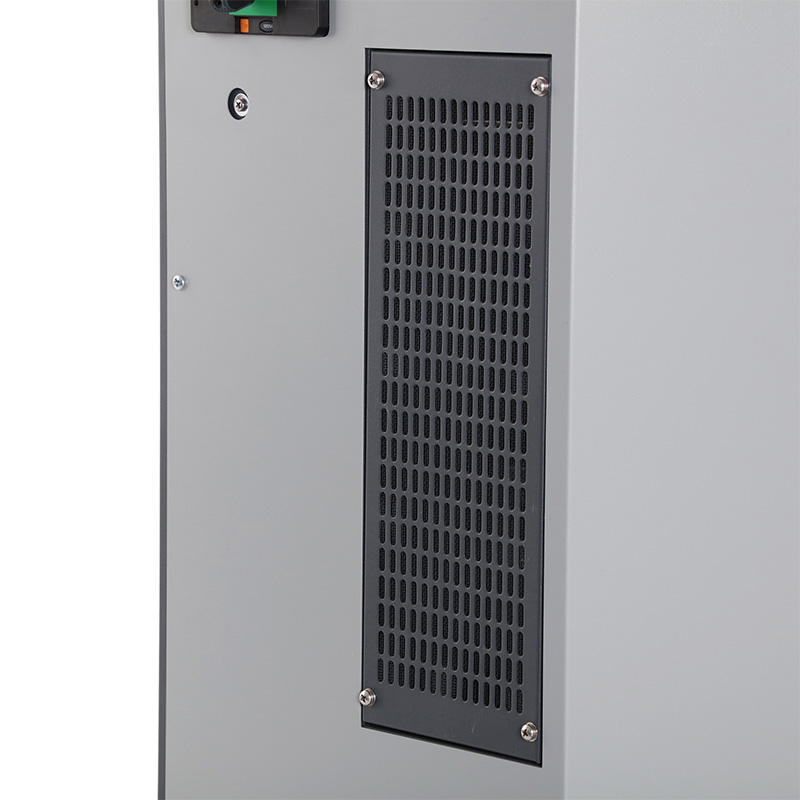

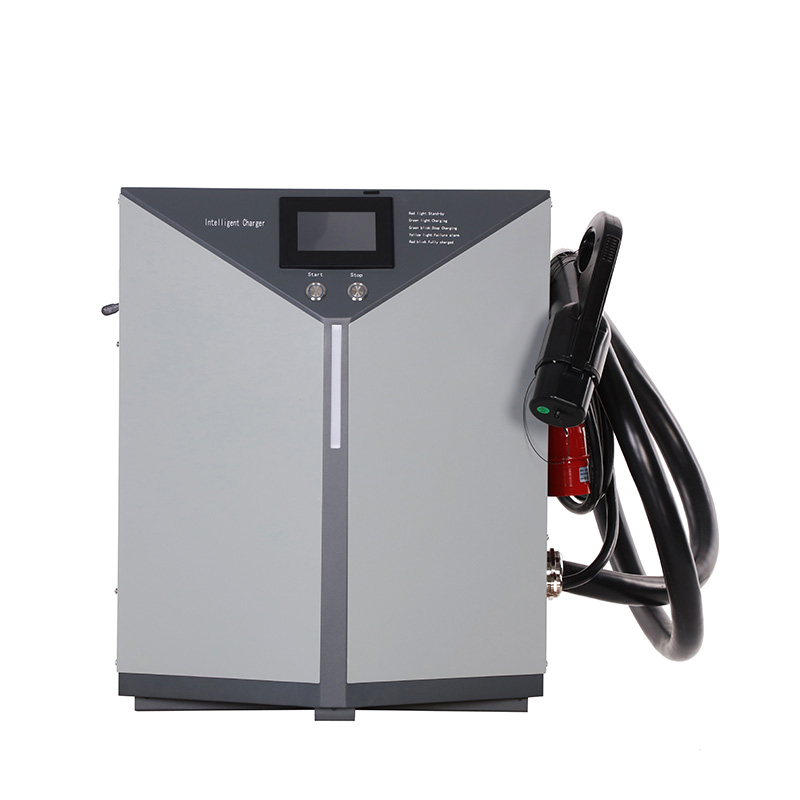

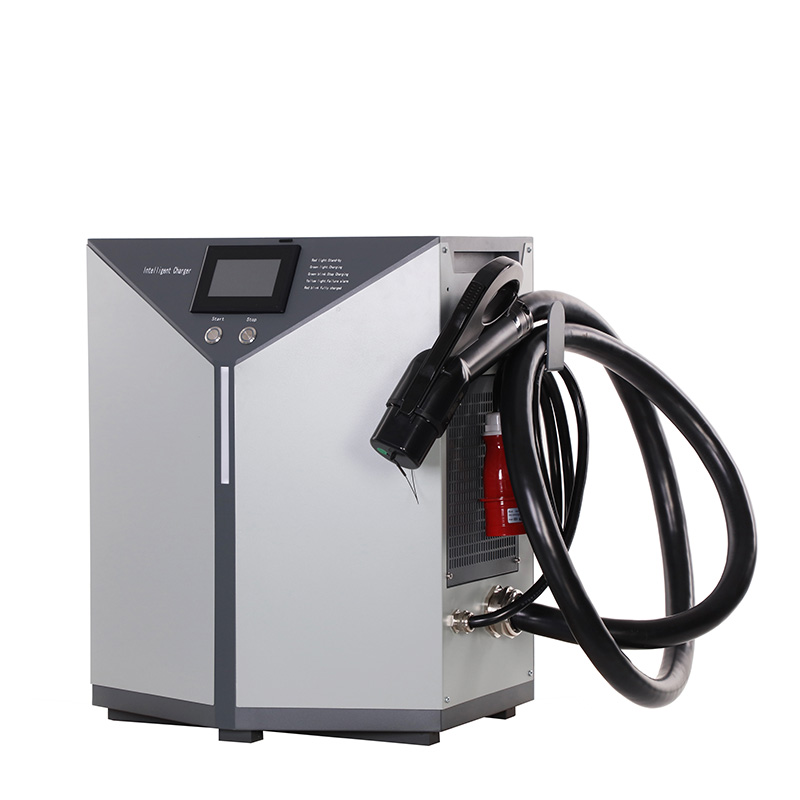

3.Picture Introduction:
4.Our Advantages:
∗At our company, we take pride in our ability to seamlessly integrate the research, development, production, and sales of various high-current connectors and accessories for new energy applications.
∗Offering unparalleled OEM cable harness customization and full-service connector and wire harness solutions, our team delivers a comprehensive approach to meeting your needs.
∗From start to finish, our goal is to provide exceptional quality and service, ensuring the success of your project. Trust us to be your all-in-one partner for cutting-edge new energy interconnectivity.
5.Packages & Shipping:
Our products are packaged to international standards, ensuring that your order arrives in immaculate condition. We are based in Guangdong, China, and dispatch all orders from this location. With our commitment to professional and efficient service, you can trust us to deliver your goods with utmost care and attention to detail.
6.FAQ:
Q: What services does your company offer for high-current connectors and cabling solutions?
A: Our company specializes in providing professional development, design, and integrated cabling solutions for high-current connectors ranging from 5A to 350A. We also offer production and sales of a wide range of high-current connectors, plugs, and UPS/EPS power sockets to support various industries, including automotive, electric vehicles, communication power, medical equipment, power distribution equipment, material handling equipment, solar energy, and new energy.
Our company boasts its own production and R&D base, and has obtained ISO9001 quality system certification. All of our products meet CE, 3C, and other certifications, as well as RoSH and REACH environmental protection requirements. With our commitment to quality and excellence, we offer reliable and efficient solutions to support our clients' businesses.
