96V 200A-G Side Loader Forklift Charger The charging station framework is thoughtfully constructed, comprising essential modules that synergistically work together to ensure optimal charging operations. These modules include the Power Factor Correction (PFC) circuit, LLC resonant network, auxiliary power supply module, and CAN communication circuit. Each component is meticulously engineered to guarantee reliable and efficient charging performance.
96V 200A-G Side Loader Forklift Charger
1.Product Introduction:
The FST-Li-G Series High-Frequency Charger combines advanced technology, compact design, and meticulous engineering to offer a reliable and efficient charging solution. It is the ideal choice for charging stations, providing exceptional performance while meeting the demands of various applications.
2.Technical Parameters:
Rated Input Voltage Range |
3P 480VAC |
Rated input frequency |
50/60Hz |
Input power |
≤20KVA |
Rated input current(Max) |
33A |
Maximum conversion efficiency |
≥93% |
Rated output current | 200A |
Rated output voltage | 96V |
Rated output power |
19.2KW |
Output and input plug specifications. |
Follow customer requirement |
Communication | CAN BUS |
Auxiliary power output voltage |
12V |
Auxiliary power output current | 3A |
Cooling method | Forced air cooling |
Operating temperature |
Full power output at -40°C to 50°C Derating output from 50°C to 75°C |
Relative humidity |
10%-90% non-condensing |
Protection level | IP 20 |
Noise |
≤55dB |
Altitude |
Below 2000m |
Weight |
30kg (for reference only, please refer to actual measurement) |

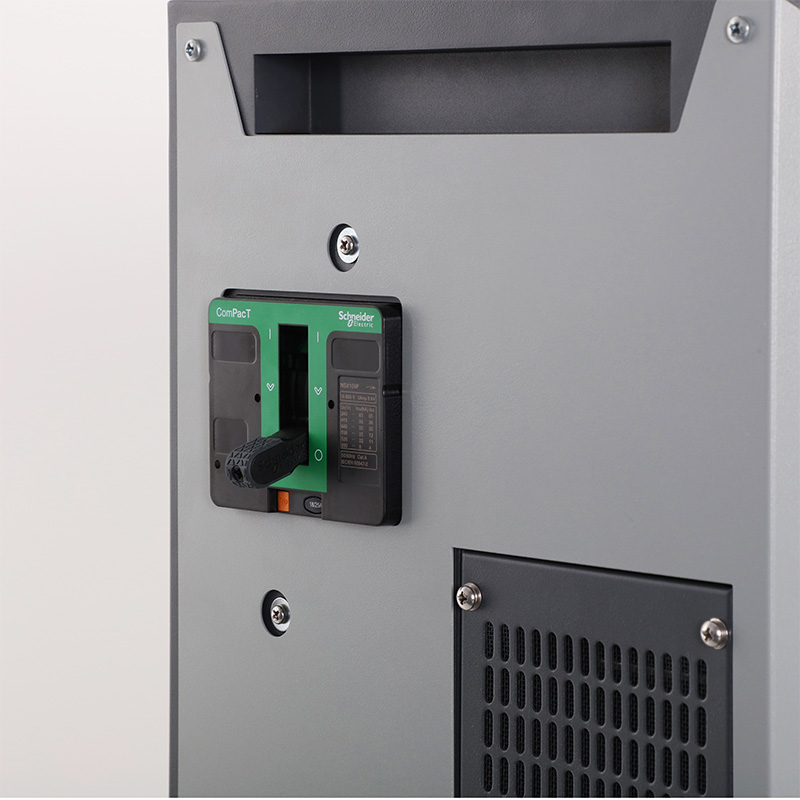

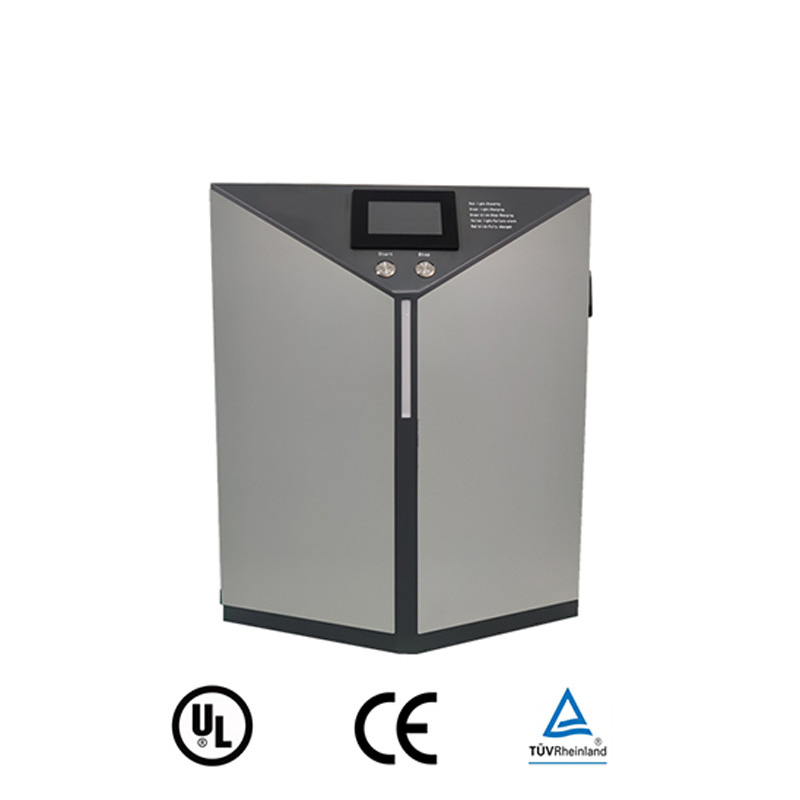

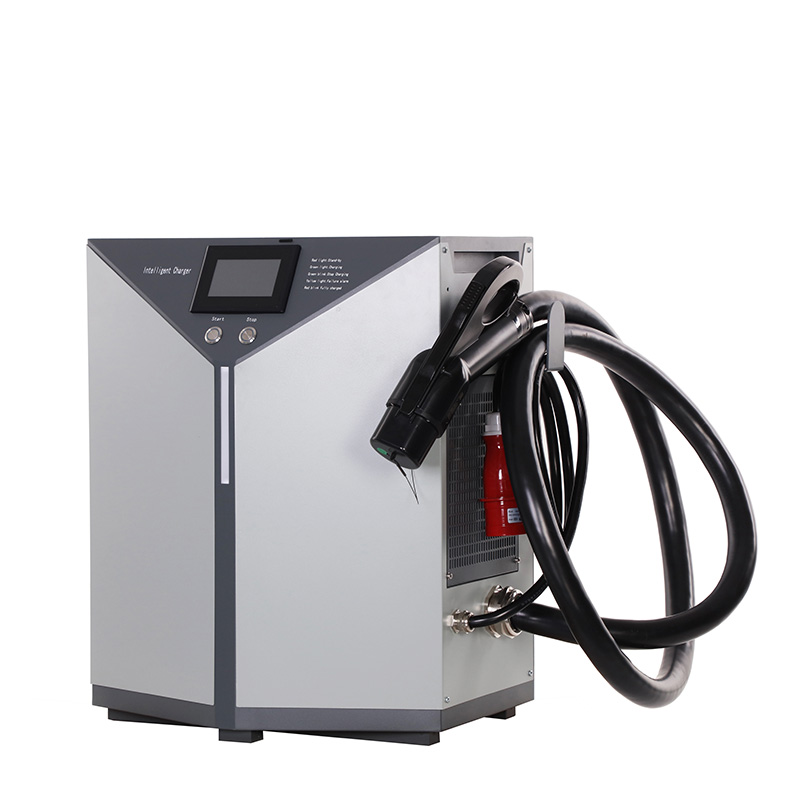

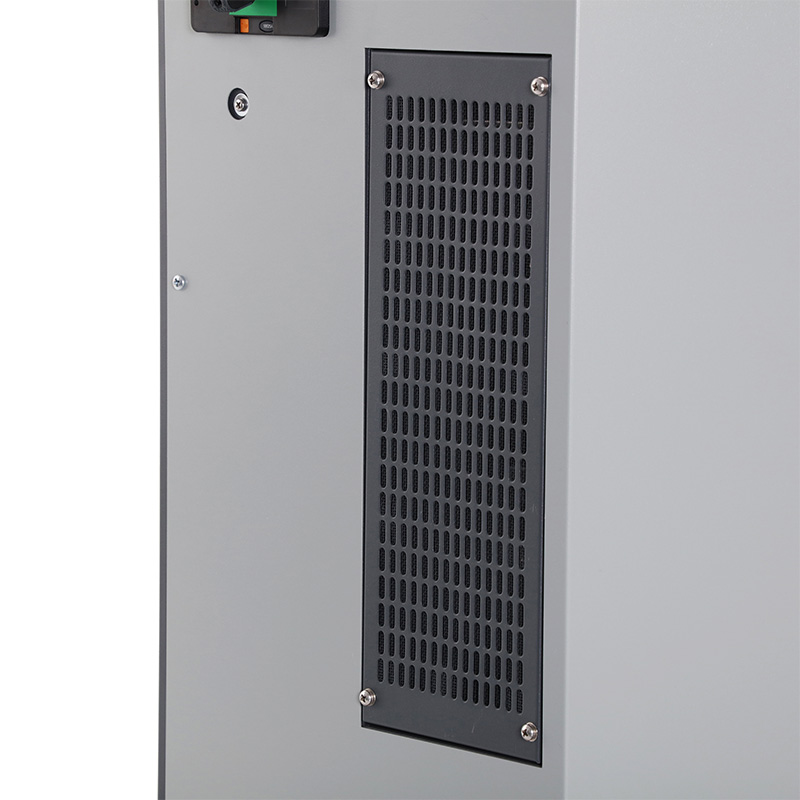

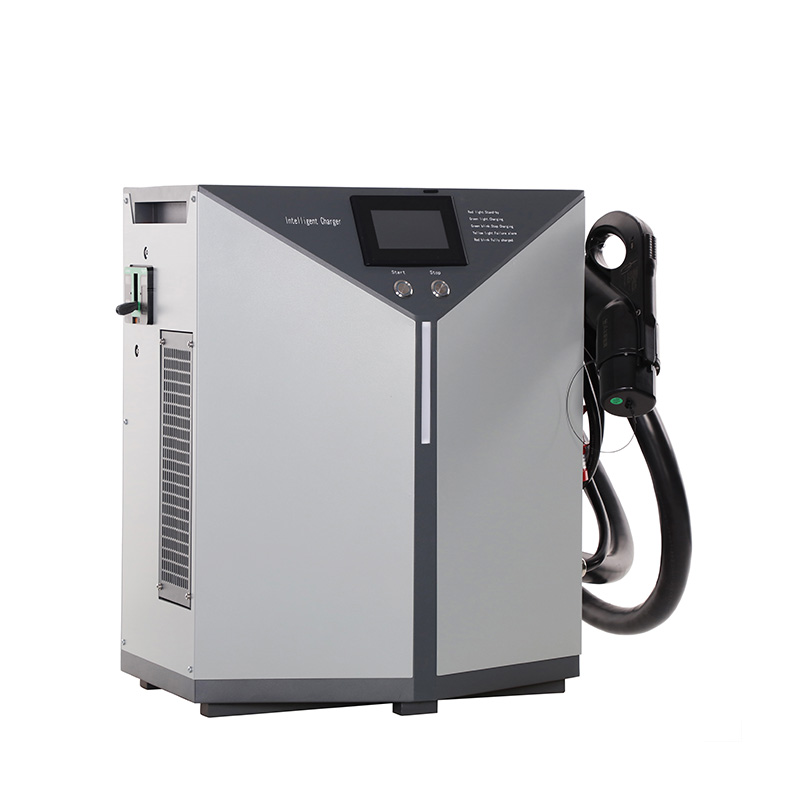

3.Picture Introduction:
4.Our Advantages:
∗At our company, we take pride in our ability to seamlessly integrate the research, development, production, and sales of various high-current connectors and accessories for new energy applications.
∗Offering unparalleled OEM cable harness customization and full-service connector and wire harness solutions, our team delivers a comprehensive approach to meeting your needs.
∗From start to finish, our goal is to provide exceptional quality and service, ensuring the success of your project. Trust us to be your all-in-one partner for cutting-edge new energy interconnectivity.
5.Packages & Shipping:
Our products are packaged to international standards, ensuring that your order arrives in immaculate condition. We are based in Guangdong, China, and dispatch all orders from this location. With our commitment to professional and efficient service, you can trust us to deliver your goods with utmost care and attention to detail.
6.FAQ:
Q: What services does your company offer for high-current connectors and cabling solutions?
A: Our company specializes in providing professional development, design, and integrated cabling solutions for high-current connectors ranging from 5A to 350A. We also offer production and sales of a wide range of high-current connectors, plugs, and UPS/EPS power sockets to support various industries, including automotive, electric vehicles, communication power, medical equipment, power distribution equipment, material handling equipment, solar energy, and new energy.
Our company boasts its own production and R&D base, and has obtained ISO9001 quality system certification. All of our products meet CE, 3C, and other certifications, as well as RoSH and REACH environmental protection requirements. With our commitment to quality and excellence, we offer reliable and efficient solutions to support our clients' businesses.
