SD75A 600V Power Unipolar Connector Terminals,Featuring contact interfaces and customizable product line lengths, our connectors are made with cold pressed technology and use flame retardant materials to ensure your safety and protection.
Made of high-quality materials, copper plated for maximum conductivity and durability. DMIC supports the overall solution of OEM wiring harness.
SD75A 600V Unipolar mobile power connector
1.Product Introduction:
Our PP single-pole plug connector, the SD75A600V, designed for both AC and DC applications at high frequencies.
Perfectly suited for a wide range of uses including battery and lithium battery connections, charging stations, forklift applications and even highway modelling.
Order your customized PP single-pole plug connector now and experience seamless, stable connections like never before.
Trust our outstanding design and engineering to elevate your experience to the next level.OEM wire harness overall solution
2.Technical Parameters:
Rated current(Amperes) | 75A |
Rated voltage(Volts) | 600V |
Insulation Resistance | 5000MΩ |
Without load(Contact/Disconnect Cycles) | To 10000 |
Flammability | UL94 V-0 |
The insertion force of finished products |
≥1.5kgf |
The pullout force of finished products |
≥2kgf |
(AWG)Contact Barrel Wire Size(AWG) | 6~ 12AWG |
Environment Temperatures(℃) |
-20℃---125℃ |
Material of terminal | Red copper |
Process of production | Precision punching |
Fully Ag-plating on surface, it’s Ag-plating thickness | 1μm |
Shrapnel | Stainless steel |
Process of production | Precision punching Plastic Injection |

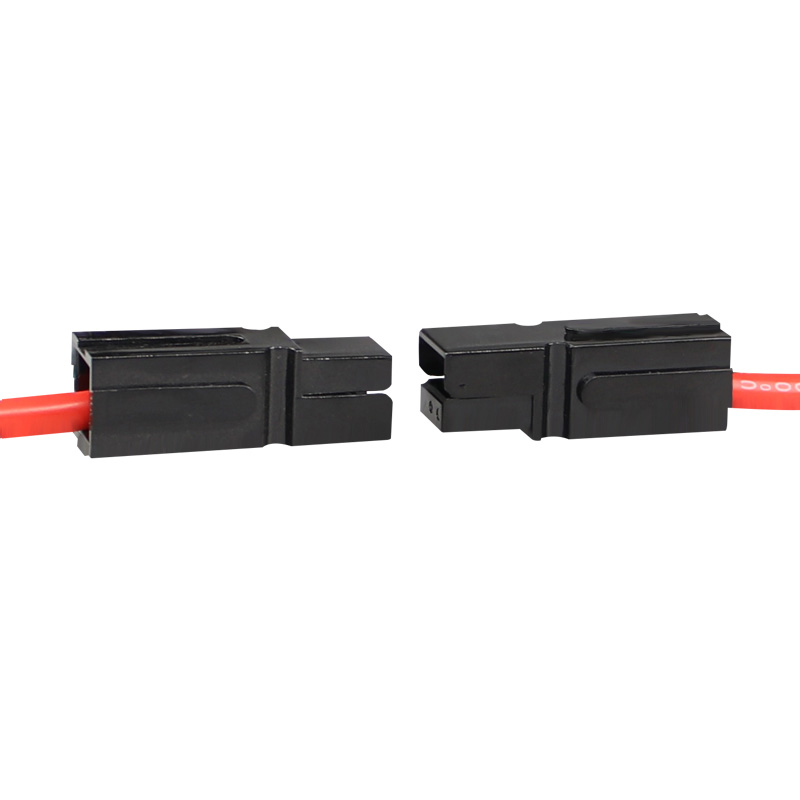

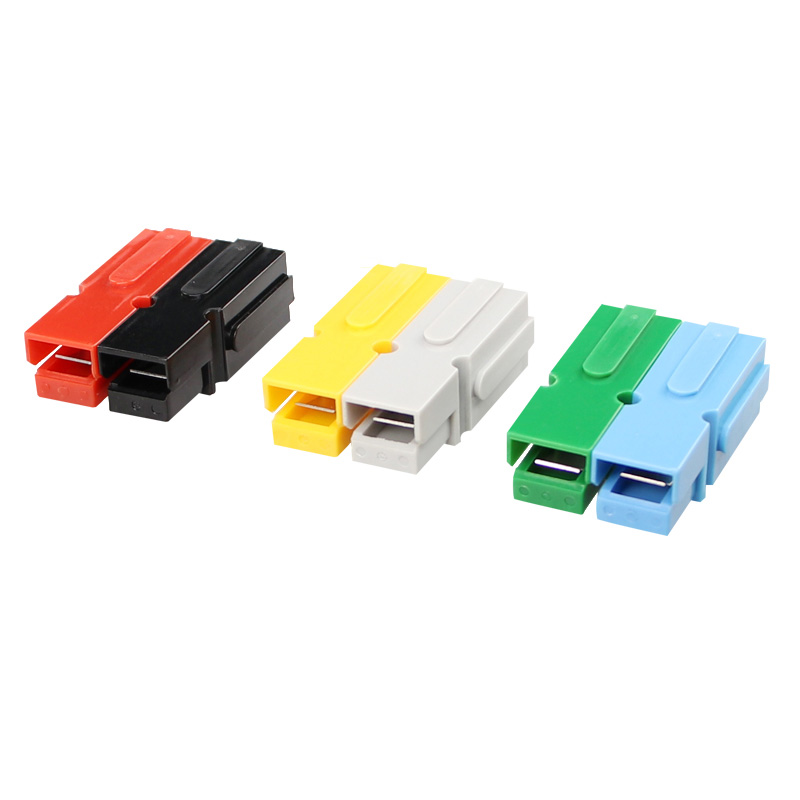

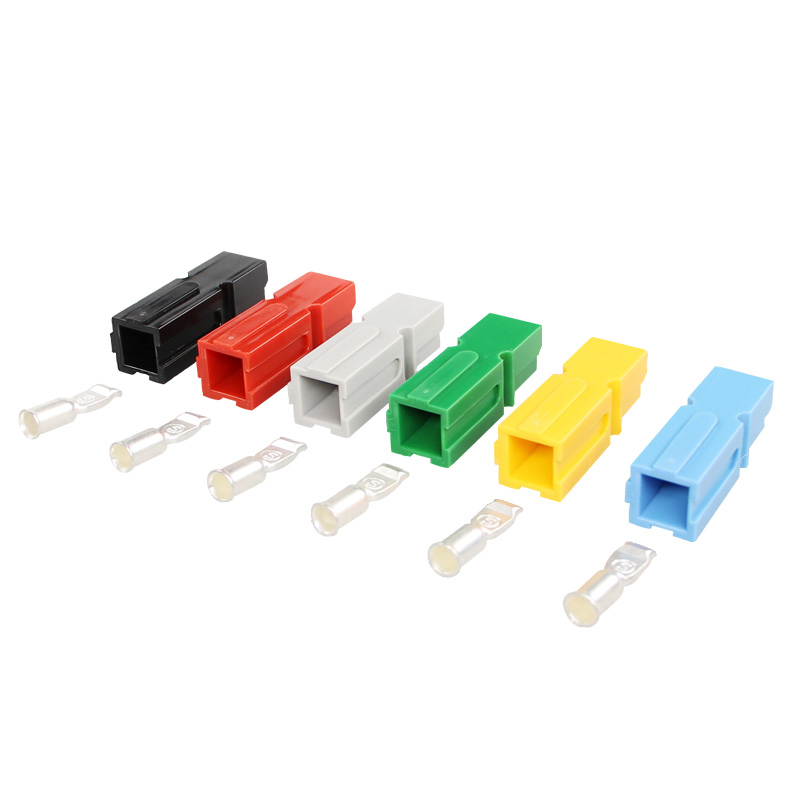

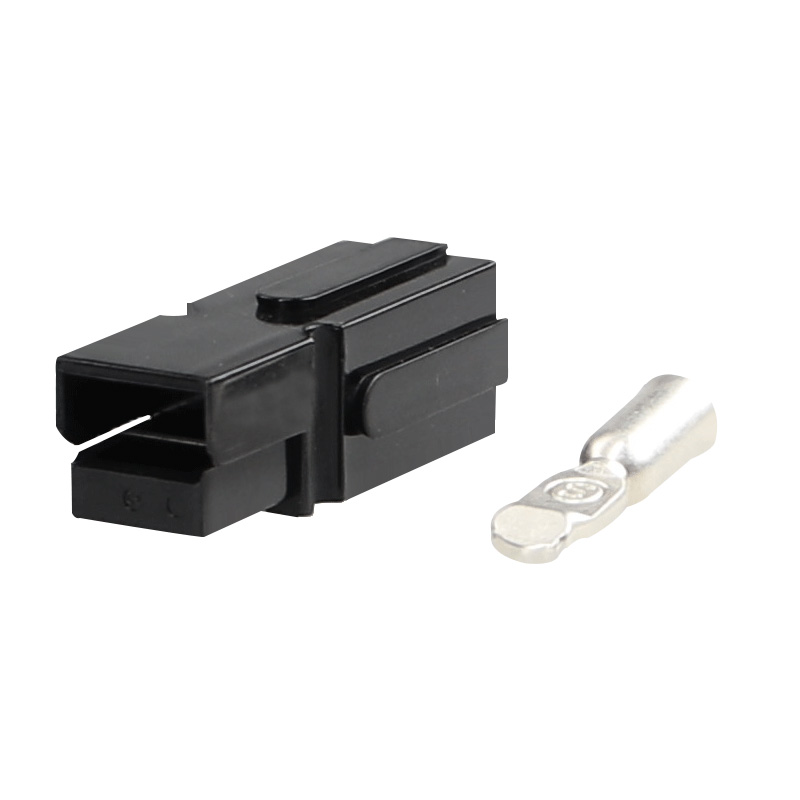

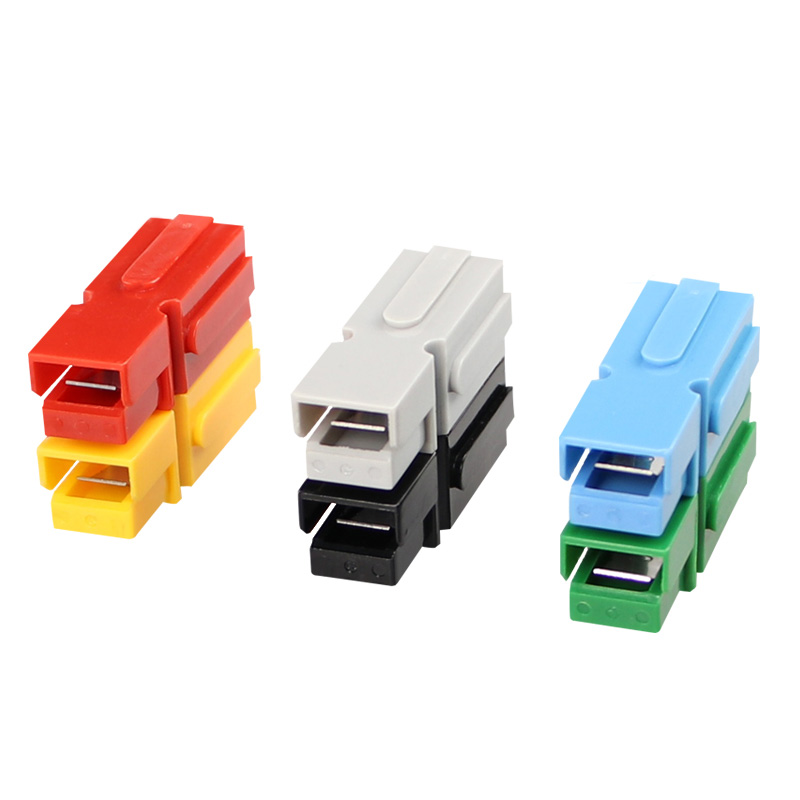

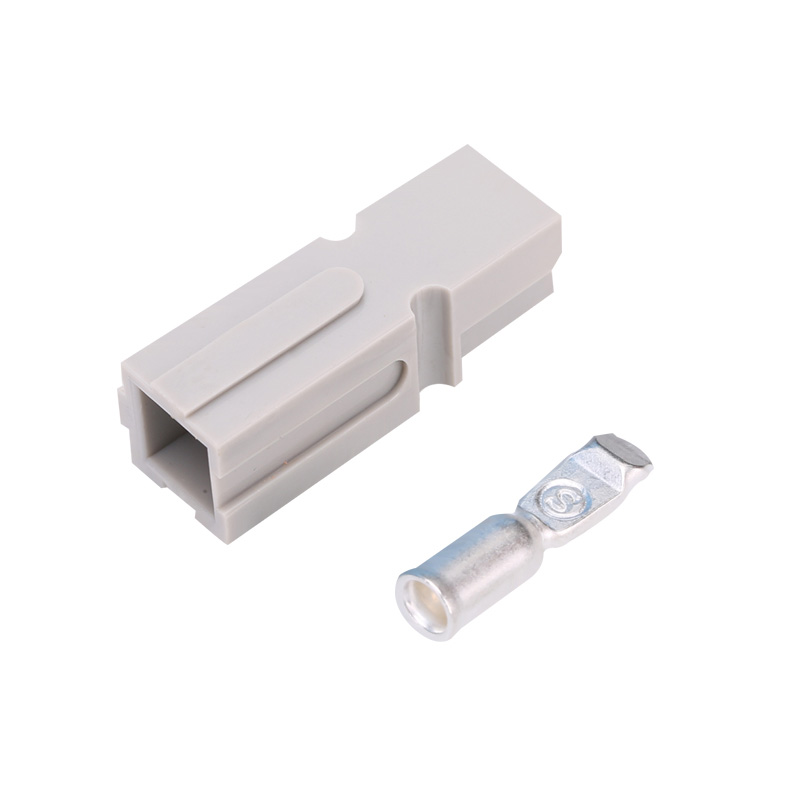

3.Picture Introduction:
4.Our Advantages:
∗At our company, we take pride in our ability to seamlessly integrate the research, development, production, and sales of various high-current connectors and accessories for new energy applications.
∗Offering unparalleled OEM cable harness customization and full-service connector and wire harness solutions, our team delivers a comprehensive approach to meeting your needs.
∗From start to finish, our goal is to provide exceptional quality and service, ensuring the success of your project. Trust us to be your all-in-one partner for cutting-edge new energy interconnectivity.
5.Packages & Shipping:
Our products are packaged to international standards, ensuring that your order arrives in immaculate condition. We are based in Guangdong, China, and dispatch all orders from this location. With our commitment to professional and efficient service, you can trust us to deliver your goods with utmost care and attention to detail.
6.FAQ:
Q: What services does your company offer for high-current connectors and cabling solutions?
A: Our company specializes in providing professional development, design, and integrated cabling solutions for high-current connectors ranging from 5A to 350A. We also offer production and sales of a wide range of high-current connectors, plugs, and UPS/EPS power sockets to support various industries, including automotive, electric vehicles, communication power, medical equipment, power distribution equipment, material handling equipment, solar energy, and new energy.
Our company boasts its own production and R&D base, and has obtained ISO9001 quality system certification. All of our products meet CE, 3C, and other certifications, as well as RoSH and REACH environmental protection requirements. With our commitment to quality and excellence, we offer reliable and efficient solutions to support our clients' businesses.
