Lithium-Ion Energy Storage System Introducing the Battery, a high-performance energy storage solution renowned for its compact size, high efficiency, easy installation, exceptional energy density, and large capacity. This battery is designed to meet the demands of various applications, offering reliable and efficient energy storage for extended periods.
Lithium-Ion Energy Storage System
1.Product Introduction:
The Battery is the perfect choice for applications that require a compact, efficient, and high-capacity energy storage solution. With its advanced features and exceptional performance, it provides reliable and efficient power supply in a wide range of settings. Trust in the Battery to meet your energy storage needs, offering long-term reliability and performance.
2.Technical Parameters:
Combination method |
16S1P(LiFePO4) |
Rated Voltage |
51.2V |
Rated Capacity |
100Ah |
Rated Energy |
5.12KWh |
Voltage at end ofDischarge |
44.8V |
Charging mode(CC-CV) | MAX :58.4V |
Standard charge current | 50A |
Maximum Charge Current |
100A |
Limiting Charge Current |
10A(Software opening) |
Standard discharge | 50A |
Maximum Discharge Current |
100A |
OperationTemperature Range |
0℃~ 55%(Charge) -20℃~ 60℃(Discharge) |
Storage Temperature Range |
-10~35℃(less than 12 months) -10~45℃(less than 3 months) -20~65℃(Less than 7 day) |
Communicationmode |
CAN / RS485 |
Cycle Life |
>6000 |
Ingress protection | IP65 |
Installation |
Wall or Floor mount |
Dimensions |
580×460×152mm |
Weight |
50kg |
Warranty |
5 Years |

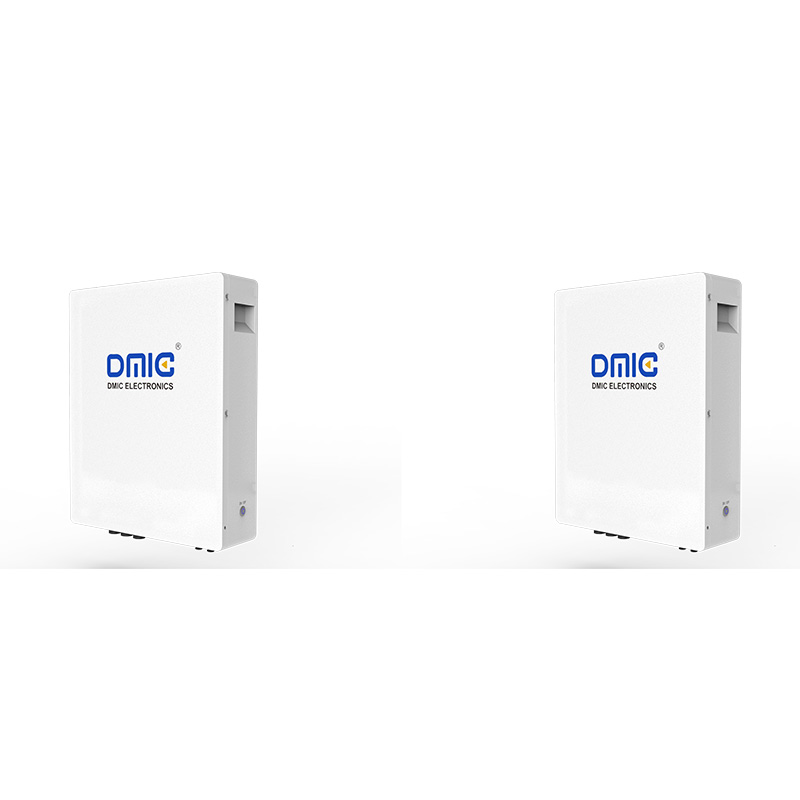

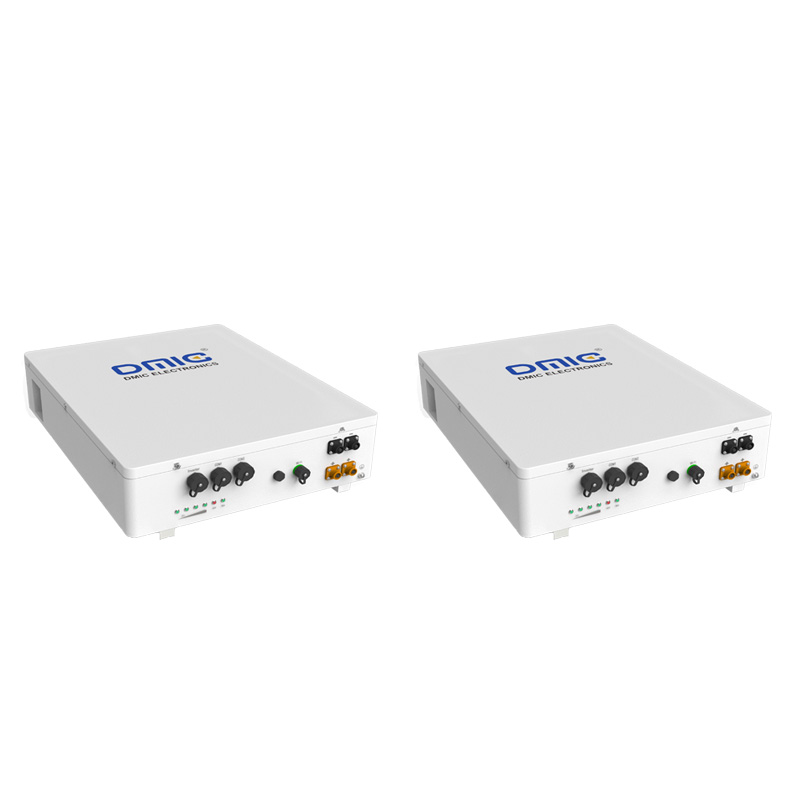

3.Picture Introduction:
4.Our Advantages:
∗At our company, we take pride in our ability to seamlessly integrate the research, development, production, and sales of various high-current connectors and accessories for new energy applications.
∗Offering unparalleled OEM cable harness customization and full-service connector and wire harness solutions, our team delivers a comprehensive approach to meeting your needs.
∗From start to finish, our goal is to provide exceptional quality and service, ensuring the success of your project. Trust us to be your all-in-one partner for cutting-edge new energy interconnectivity.
5.Packages & Shipping:
Our products are packaged to international standards, ensuring that your order arrives in immaculate condition. We are based in Guangdong, China, and dispatch all orders from this location. With our commitment to professional and efficient service, you can trust us to deliver your goods with utmost care and attention to detail.
6.FAQ:
Q: What services does your company offer for high-current connectors and cabling solutions?
A: Our company specializes in providing professional development, design, and integrated cabling solutions for high-current connectors ranging from 5A to 350A. We also offer production and sales of a wide range of high-current connectors, plugs, and UPS/EPS power sockets to support various industries, including automotive, electric vehicles, communication power, medical equipment, power distribution equipment, material handling equipment, solar energy, and new energy.
Our company boasts its own production and R&D base, and has obtained ISO9001 quality system certification. All of our products meet CE, 3C, and other certifications, as well as RoSH and REACH environmental protection requirements. With our commitment to quality and excellence, we offer reliable and efficient solutions to support our clients' businesses.
